♦Features

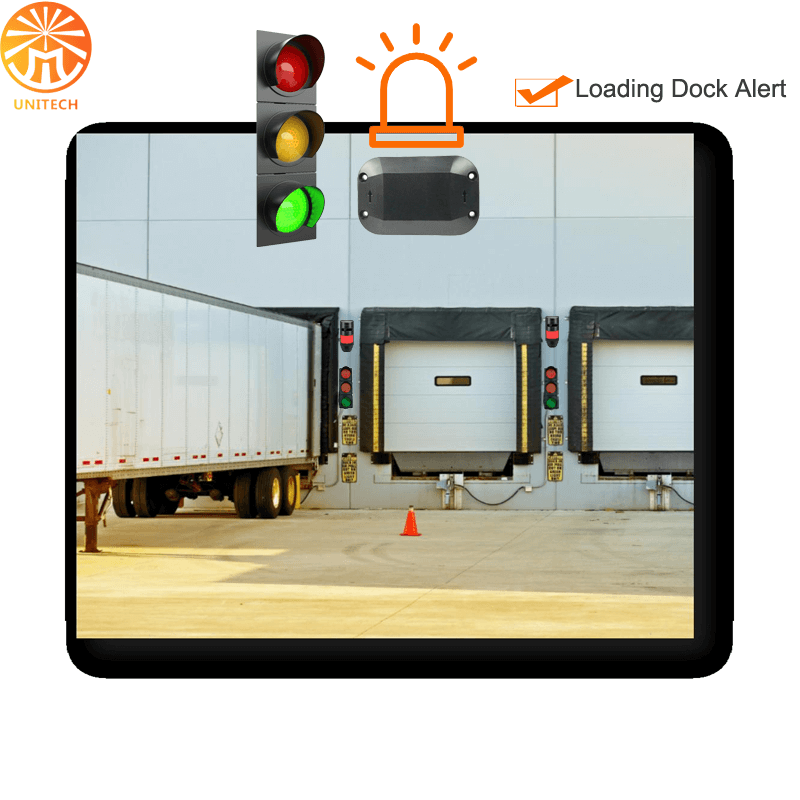

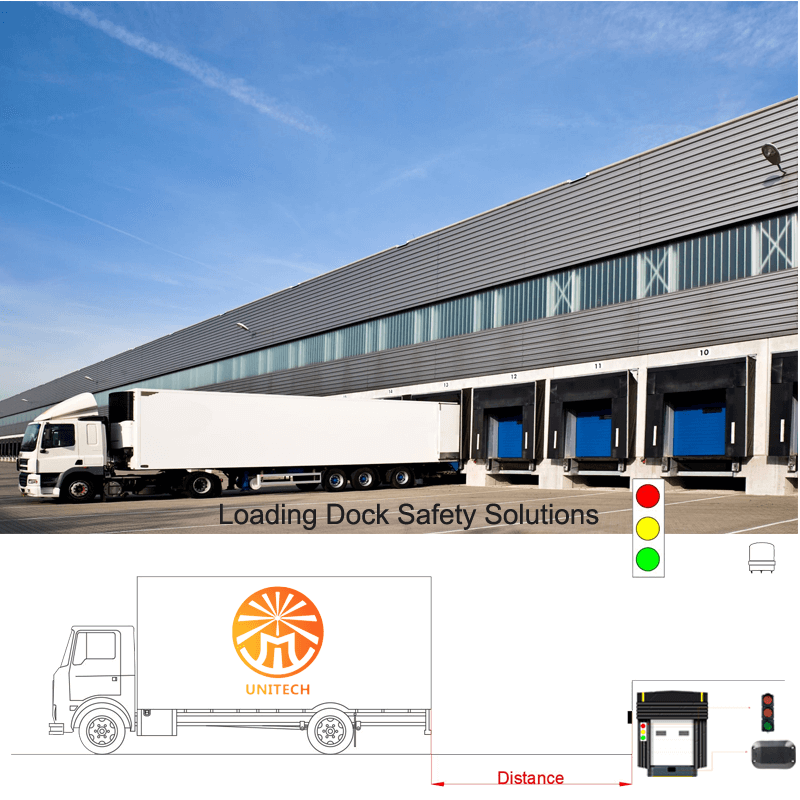

Smart Loading Dock Safety System DockSense Alert System Dock Collision Warning is a set of equipment and procedures designed to protect workers, equipment, and goods during loading and unloading operations at a loading dock. These systems are crucial for preventing accidents, injuries, and property damage.
Loading docks are high-traffic areas where efficiency meets constant risk. The continuous movement of heavy vehicles and personnel in a fast-paced environment creates conditions where safety can be easily compromised. These challenges increase the likelihood of accidents and lead to operational inefficiencies.

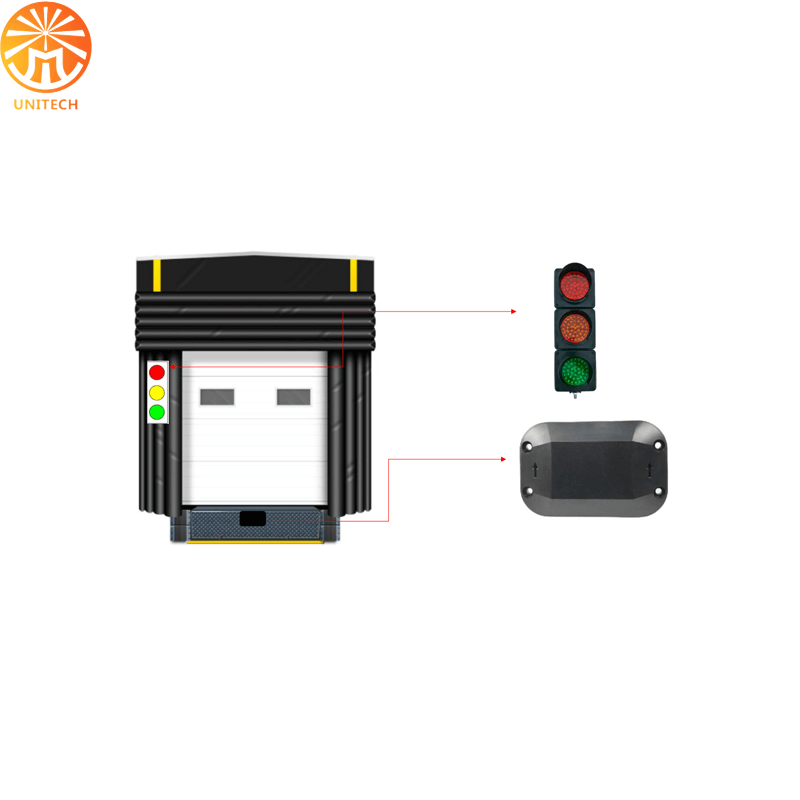

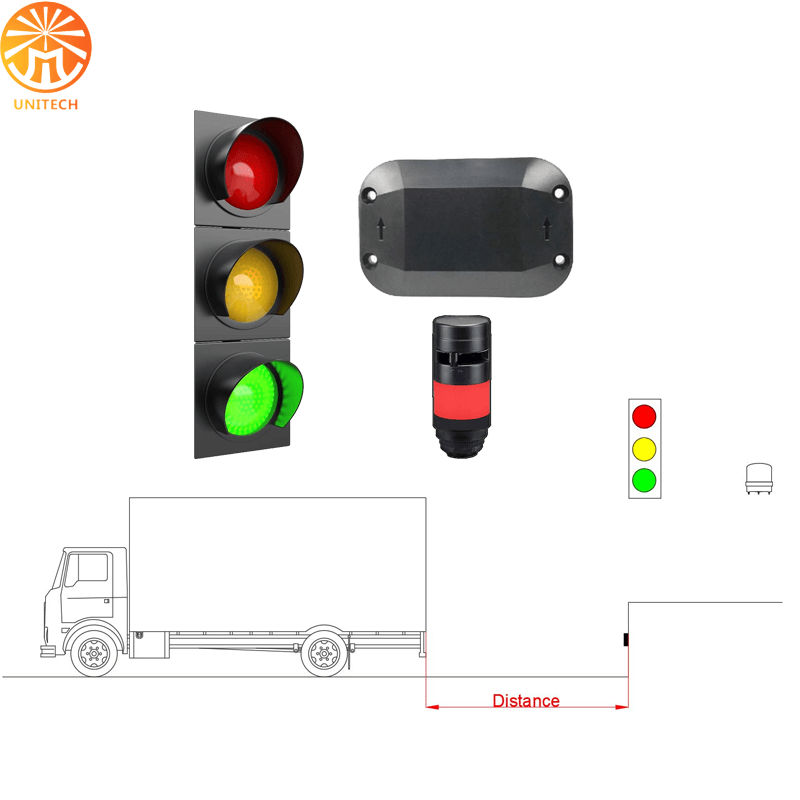

♦ Parts List
| No. | Part Name | Qty |
|---|---|---|
| 1 | Microwave radar | 1 pcs |
| 2 | Signal light | 1 pcs |
| 3 | Beacon | 1 pcs |
| 4 | Switch | 1 pcs |
| 5 | Control box | 1 pcs |
| 6 | Harness | 1 set |
| 7 | Installation kit | 1 set |
♦ Technical Specifications
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Rated working voltage（V） | 12V /24V | Horizontal angle（°） | 150° |
| Operating voltage range（V） | 9-36V | Vertical angle（°） | 20° |
| Working current | ＜200mA | Angle accuracy（°） | ±0.5 @ 40° |
| Operating temperature range（℃） | -40 ~ +80℃ | Angular resolution（°） | 15° |
| Storage temperature range（℃） | -40 ~ +85℃ | Speed Range（km/h） | -300 ~ +300 km/h |
| Working frequency（GHz） | 77 | Speed Accuracy（m/s） | 0.2 |
| Transmit power（dBm） | 12 | Detectability（m） | 50 |
| Modulation mode | FMCW | Distance Accuracy（m） | 0.1 |
| Antenna form | 2TX，4RX | Distance Resolution（m） | 0.1 |
| Traceable target numberMAX | 128 | Waterproof grade | IP67 |
