● 360° omnidirectional monitoring, the farthest monitoring range is 100m；
● Volume, alarm frequency, collision avoidance distance and alarm segment can be configured through the configurator；
● Support warning distance, warning zone and warning light frequency settings.

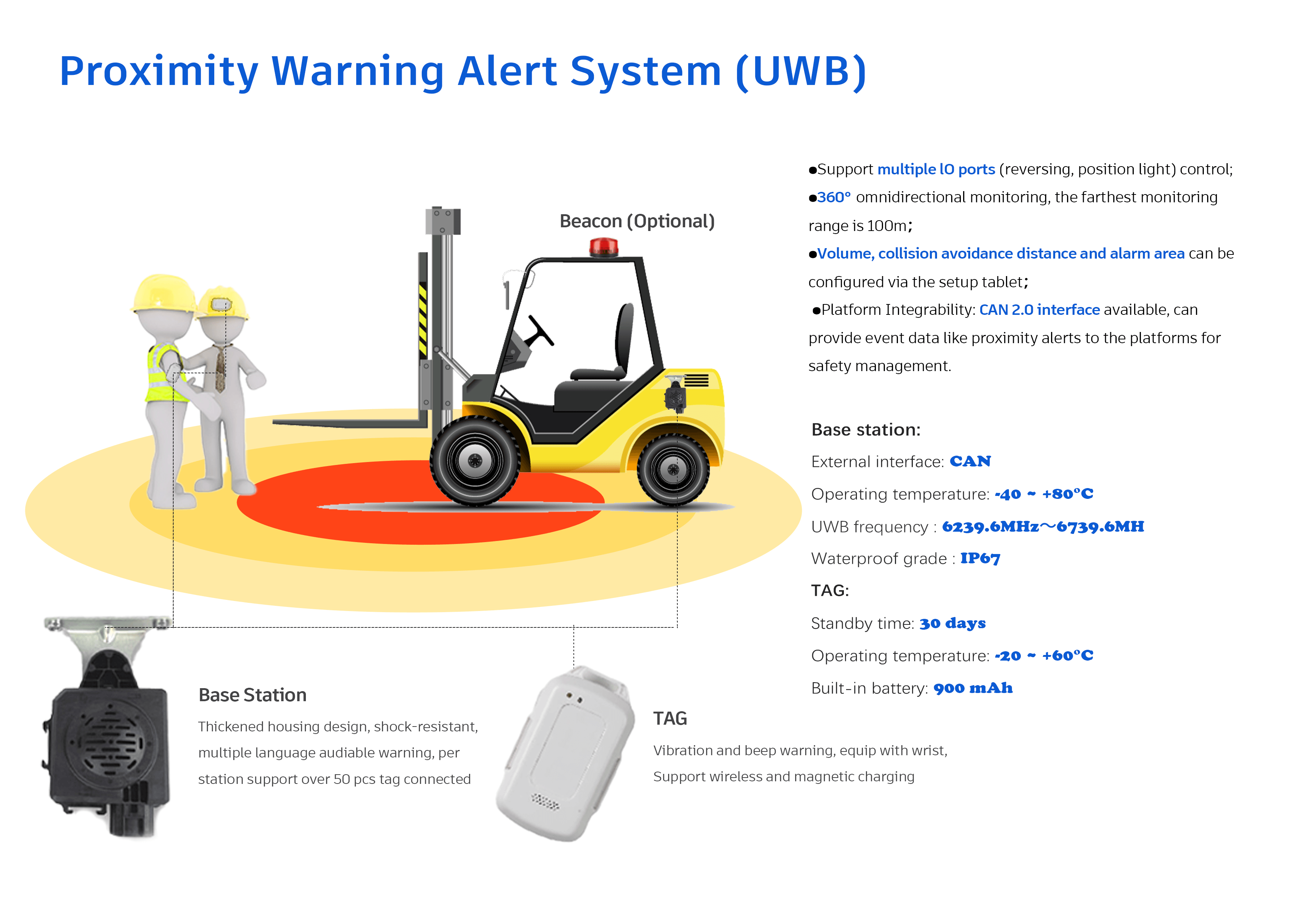

OEM Pedestrian Protection Detection Systems Forklift Collision Avoidance is a safety distance measurement system independently developed based on UWB technology, the accuracy can reach the centimeter level, and the forklift accident can be effectively prevented through accurate distance measurement and pre-alert. In specific applications, when the distance between vehicles and vehicles between pedestrians is less than the set minimum value, the alarms and tags connected to the base station will send out alarms in real time to prevent collision accidents.
| Coverage | In the case of no occlusion, the maximum distance can reach 100 meters |
|---|---|
| Positioning | TOF/TD0A |
| Positioning accuracy | In the case of no occlusion, the maximum can reach ±1cm |
| Sound reminder | 60dB~75dB measured at 2m |
| Antenna type | built-in antenna |
| Built-in battery | Built-in battery |
The base station sends and receives the signal of the tag, and calculates the distance between the vehicles and the distance between the vehicle and the pedestrian by measuring the flight time of the UWB signal between the base station and the tag. When the distance is less than the set minimum data, the buzzer and the warning light will provide an alarm in real time.
♦ Base Station
The base station sends and receives the signal of the tag, and calculates the distance between the vehicles and the distance
between the vehicle and the pedestrian by measuring the flight time of the UWB signal between the base station and the tag.
When the distance is less than the set minimum data, the buzzer and the warning light will provide an alarm in real time.
♦ Tag
The tag is a professional-grade high-precision positioning tag that broadcasts UWB signals regularly, and uses the built-in
UWB module to realize two-way information transmission with the base station. When the distance between the tag and the
base station is less than the set minimum value, the speaker and vibrator on the tag will send out an alarm and remind in
real time.
♦ Base Station Electrical Specifications
| Item | Specification |
|---|---|
| Positioning | TOF/TD0A |
| Positioning accuracy | accuracy In the case of no occlusion, the maximum can reach ±1cm |
| Coverage | In the case of no occlusion, the maximum distance can reach 100 meters |
| UWB frequency | 6239.6MHz～6739.6MHz |
| Antenna type | built-in antenna |
| Housing material | Environmental friendly material |
| Sound reminder | 60dB~75dB measured at 2m |
| External interface | CAN |
| Waterproof and dustproof | IP67 |
| Operating temperature | -40℃~85℃ |
| Storage temperature | -40℃~90℃ |
♦ Tag Electrical Specifications
| Item | Specification |
|---|---|
| Positioning | TOF/TD0A |
| Positioning accuracy | accuracy In the case of no occlusion, the maximum can reach ±1cm |
| Coverage | In the case of no occlusion, the maximum distance can reach 100 meters |
| UWB frequency | 6239.6MHz～6739.6MHz |
| Antenna type | built-in antenna |
| Housing material | Environmental friendly material |
| Sound alert | Yes |
| Vibration alert | Yes |
| Charging voltage | 5V |
| Built-in battery | 900mAh |
| Standby time | 30 days |
| Charging method | Wired Type-C |
| Charging time | Around 2 hours |
| Waterproof and dustproof | IP65 |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -40℃~ 85℃ |
♦ FEATURES:
High Precision detection:
UWB is able to provide real-time monitoring and centimeter-level accuracy in distance measurements.
Two-way warning alert:
To prevent collisions, base station and tag both with audible warning alerts.
Scalability:
It can be integrated with external devices such as beacon, speaker or control devices to implement various industrial safety scenarios. Bespoke services are available for your workplace with various safety scenarios.
Platform Integrability:
CAN 2.0 interface available, can provide event data like proximity alerts to the platforms for safety management.
Function Setup Support:
To adapt to various working environment, it allows for the setting of various caution and danger zones according to the site environment and provides alerts accordingly.
System Function:
Working condition 1: Leave the safety area and provide warning
Working condition 2: Collision warning between vehicles
Working condition 3: Warning between Pedestrians and vehicles
