♦Features

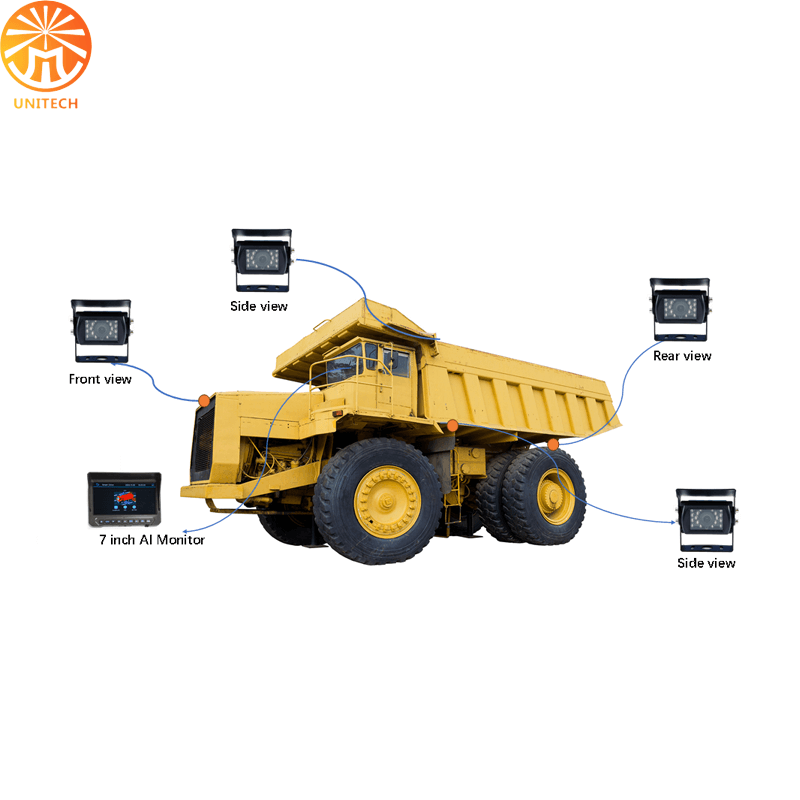

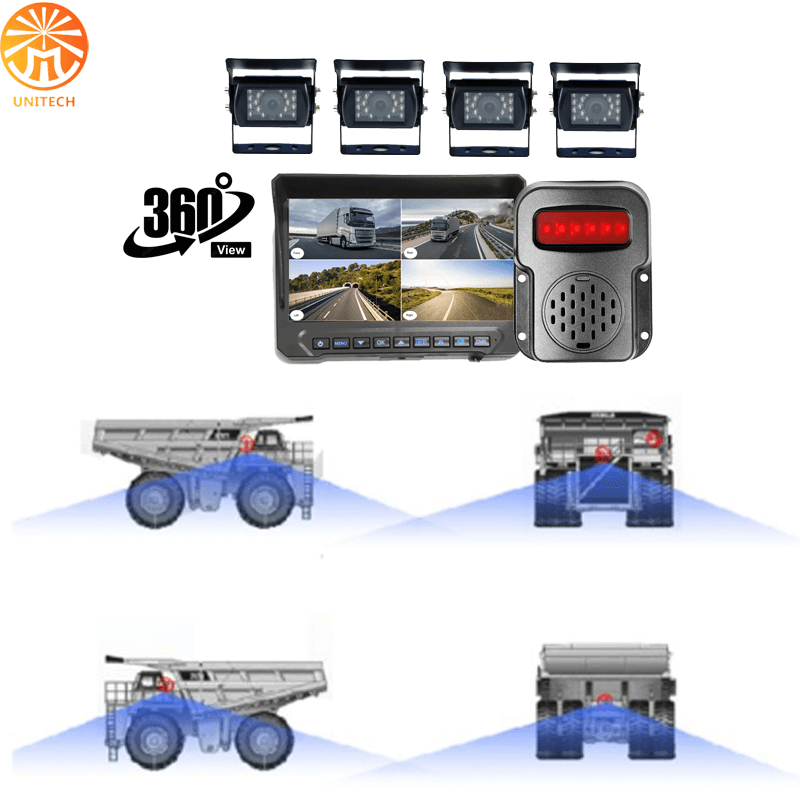

360 Blind Spots Coverage Mining Truck Surround View Camera Mining Security Systems is a highly specialized surveillance solution, featuring a 7-inch waterproof vision system. This 360° view camera system is specifically designed for dump trucks, Commercial trucks, buses, RVs, and special vehicles, aiming to significantly enhance the safety and efficiency of their operations by providing comprehensive visibility and eliminating blind spots.
The 4-camera Blind Spot Monitoring & Recording System is an integrated driver assistance solution that combines AI-powered blind spot detection, high-definition video surveillance, voice control, and multi-channel video recording. Designed to enhance driving safety and awareness, it offers reliable performance for a wide range of vehicles including trucks, buses, and construction equipment.

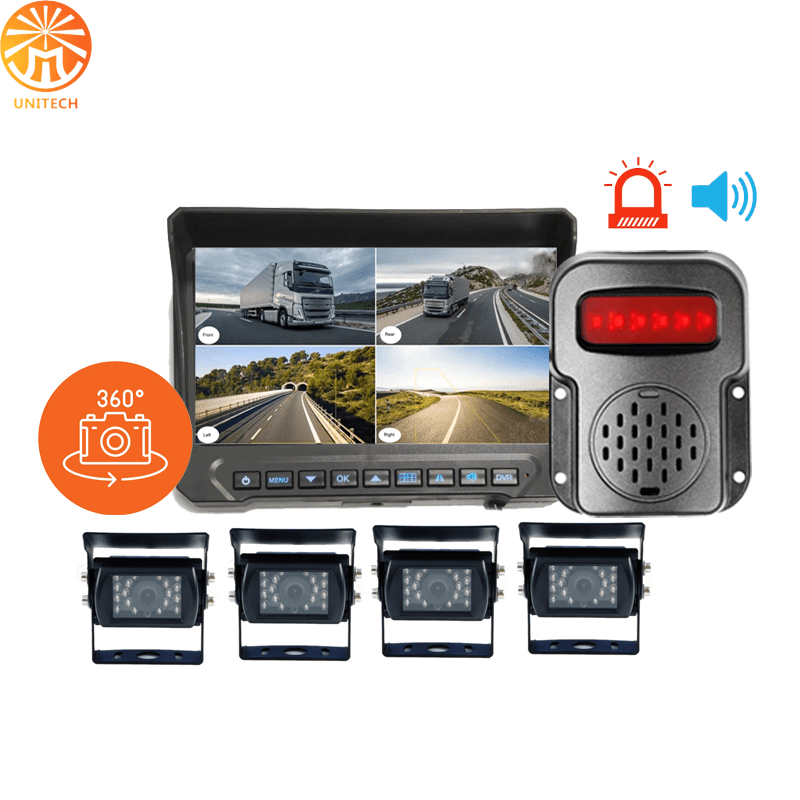

♦ Parts List
| No. | Part Name | Qty |
|---|---|---|
| 1 | AHD camera | 4 pcs |
| 2 | AI Monitor | 1 pcs |
| 3 | Extension cable | 5m x 3, 10m x 1 |
| 4 | Main cable | 1 pcs |
| 5 | Installation kit | 1 set |
♦ Technical Specifications
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Rated working voltage （V） | DC12V | Camera angle | AHD: 122 ° diagonal, 102 ° horizontal, 50 ° vertical |
| Operating voltage range（V） | 9-36V | CVBS: 85° diagonal, 65 ° horizontal, 30 ° vertical |
|
| Working current | 1000mA | Seismic rating | 10G |
| Operating temperature range（℃） | -30 ~ +75℃ | Waterproof grade | IP68 |
| Storage temperature range（℃） | -30 ~ +80℃ | Video output | CVBS/AHD |
| Power | ≤4.5W | Format | NTSC/PAL |
| Resolution | 1920*1080P | SNR | ≥37dB |
